OTA Firmware Upgrade

fastbeeAbout 2 min

Overview

This page is the English counterpart of the Chinese OTA Firmware Upgrade guide. It summarizes platform operation workflows, configuration points, and verification steps while keeping the document path aligned with the Chinese documentation structure.

How To Use This Page

Follow the same operation order as the Chinese source page.
Keep configuration values, topic names, ports, commands, and file paths consistent with your deployment environment.
Screenshots and diagrams reuse the Chinese documentation image directory so assets are maintained in one place.
For production changes, validate the operation in a test environment before applying it online.

Reference Commands And Configuration

The following snippets are preserved from the source guide because commands, configuration keys, and protocol examples should remain exact.

     {
       "taskId": 26,
       "url": "/profile/iot/1/2024-0824-001954.bin",
       "version": 1.2,
       "status": 1
     }
     ```

```json
     {
     "taskId": 26,
     "progress": 100,
     "version": "1.2",
     "status": 2
     }
     ```

```json
     {
     "taskId": 26,
     "version": "1.2",
     "status": 3
     }
     ```

```java
   // status状态字段定义
    AWAIT(0, "等待升级","未推送固件到设备"),
    SEND(1, "已发送","已发送设备"),
    REPLY(2, "升级中","设备OTA升级中"),
    SUCCESS(3, "成功","升级成功"),
    FAILED(4, "失败","升级失败"),
    STOP(5, "停止","设备离线停止推送"),
    UNKNOWN(404, "未知","未知错误码");

    //主题定义
    ${taskId}/ws/ota/status          是云端后台推送给云端前台的一个展示状态主题

    ${serialNumber}/http/upgrade/set  是云端推送给设备的主题

    ${serialNumber}/http/upgrade/reply 是设备上给云端的主题

Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 0,
  "timestamp": 1724482221250
}
Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 1,
  "timestamp": 1724482221251
}
Topic: /D1832O34Z5M1/http/upgrade/set
{
  "taskId": 26,
  "url": "/profile/iot/1/2024-0824-001954.bin",
  "version": 1.2,
  "status": 1
}
                                                                    Topic: /D1832O34Z5M1/http/upgrade/reply
                                                                    {
                                                                    "taskId": 26,
                                                                    "progress": 5,
                                                                    "version": "1.2",
                                                                    "status": 2
                                                                    }
Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 2,
  "timestamp": 1724482231404,
  "progress": 5
}
                                                                    Topic: /D1832O34Z5M1/http/upgrade/reply
                                                                    {
                                                                        "taskId": 26,
                                                                        "progress": 50,
                                                                        "version": "1.2",
                                                                        "status": 2
                                                                    }
Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 2,
  "timestamp": 1724482251326,
  "progress": 50
}
                                                                    Topic: /D1832O34Z5M1/http/upgrade/reply
                                                                    {
                                                                    "taskId": 26,
                                                                    "progress": 70,
                                                                    "version": "1.2",
                                                                    "status": 2
                                                                    }
Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 2,
  "timestamp": 1724482290405,
  "progress": 70
}
                                                                    Topic: /D1832O34Z5M1/http/upgrade/reply
                                                                    {
                                                                    "taskId": 26,
                                                                    "progress": 100,
                                                                    "version": "1.2",
                                                                    "status": 2
                                                                    }

Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 2,
  "timestamp": 1724482302296,
  "progress": 100
}

                                                                    Topic: /D1832O34Z5M1/http/upgrade/reply
                                                                    {
                                                                    "taskId": 26,
                                                                    "progress": 100,
                                                                    "version": "1.2",
                                                                    "status": 3
                                                                    }
Topic: /26/ws/ota/status
{
  "serialNumber": "D1832O34Z5M1",
  "status": 3,
  "timestamp": 1724482308749
}

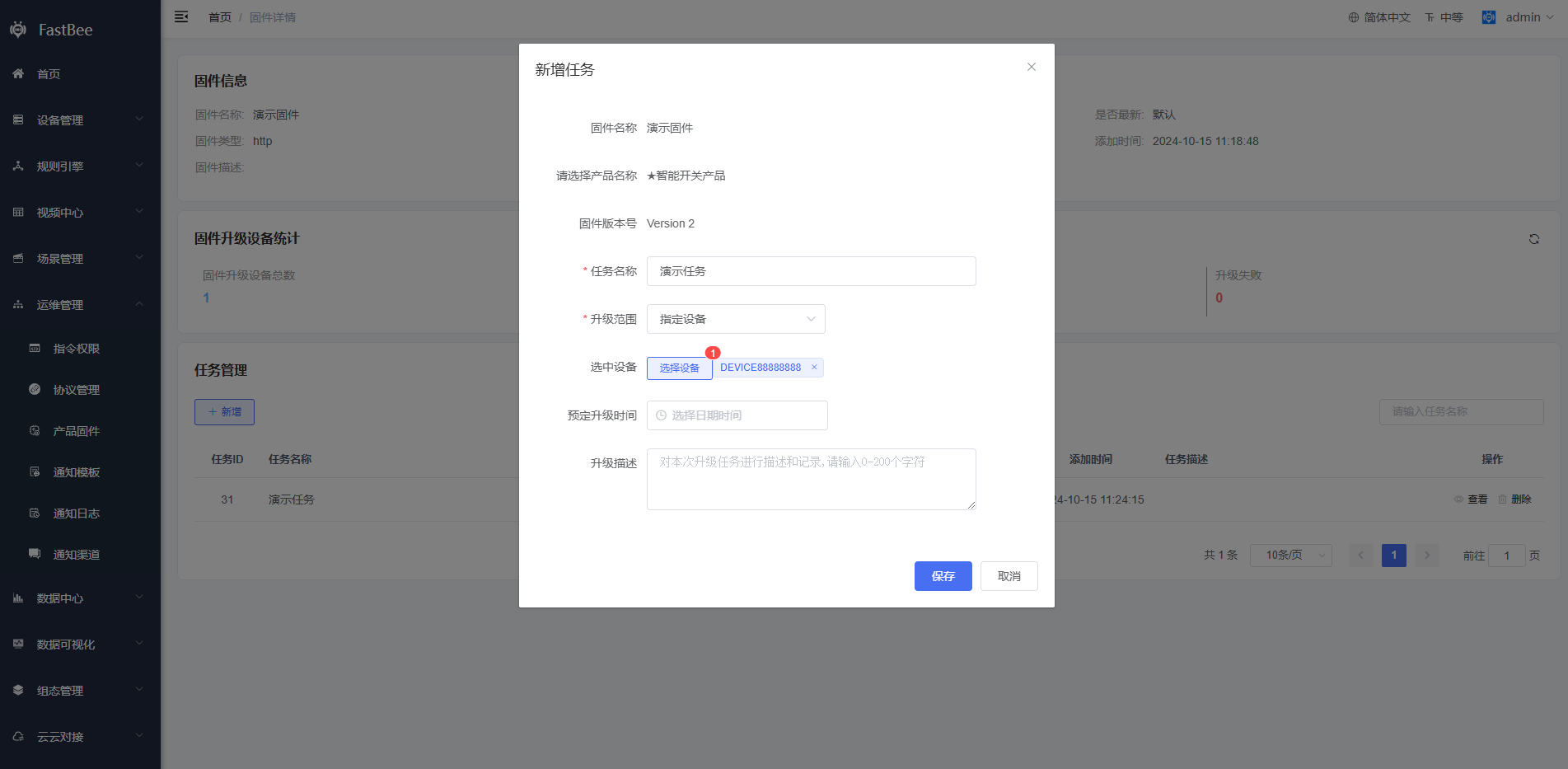

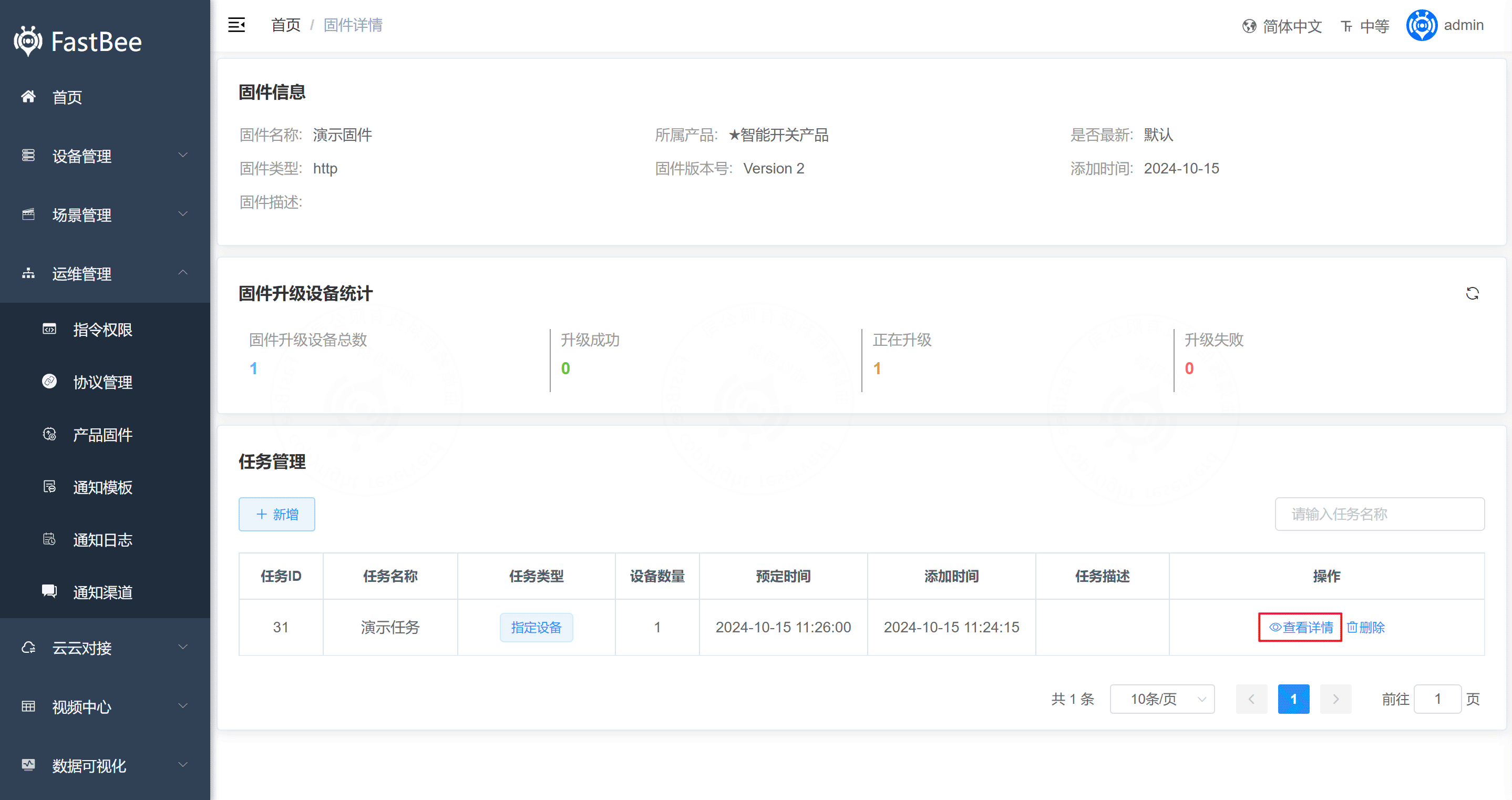

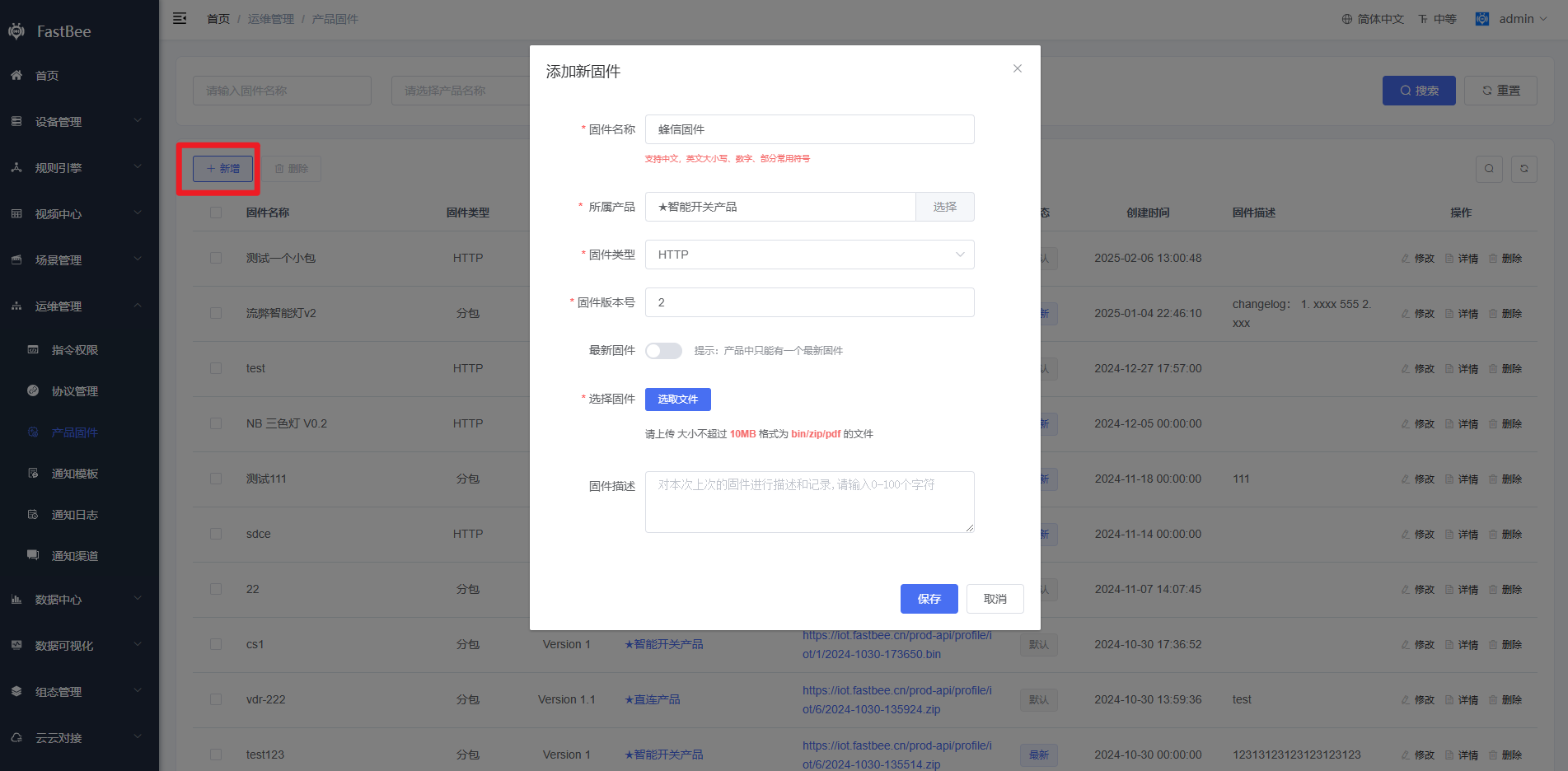

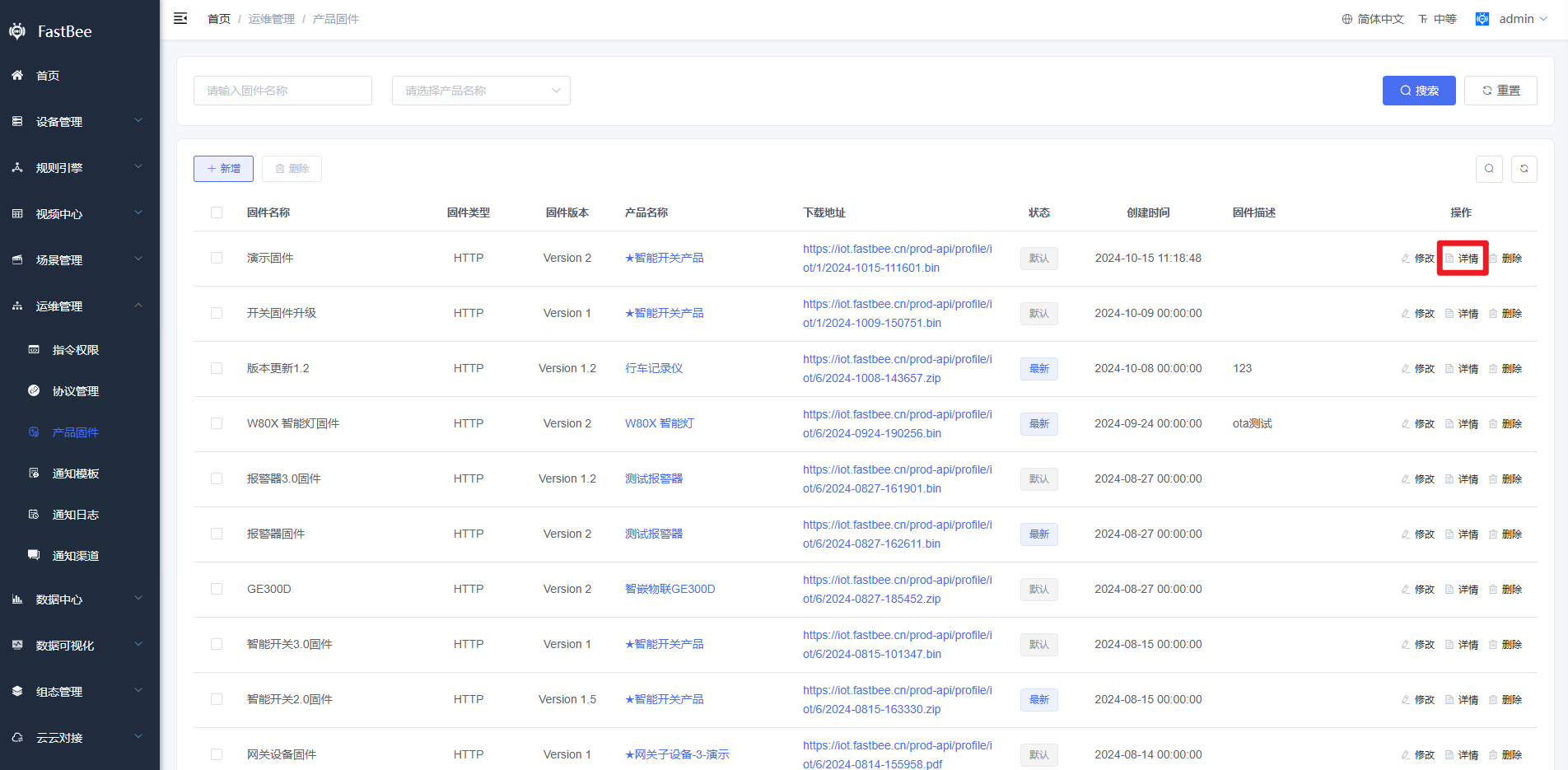

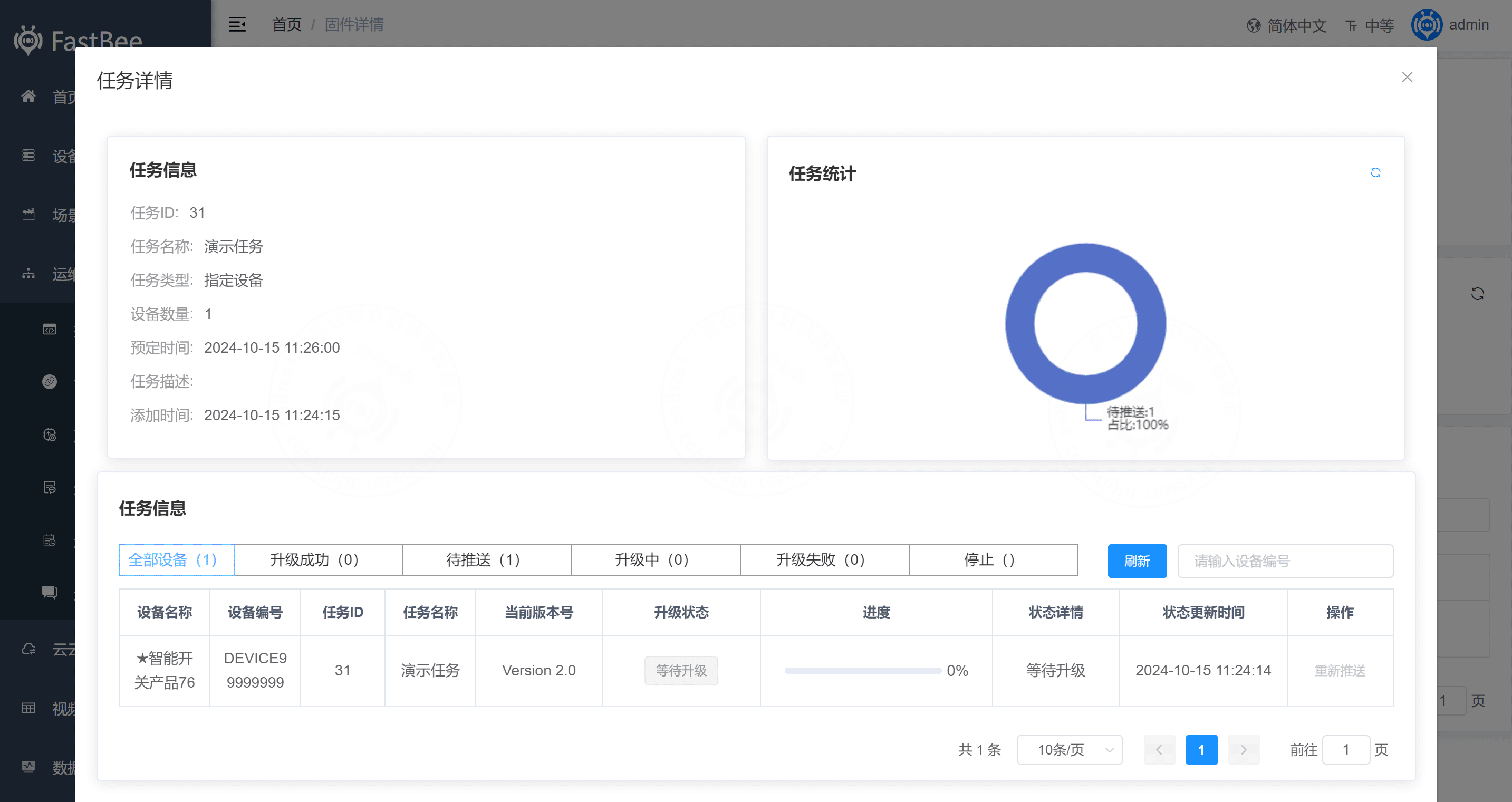

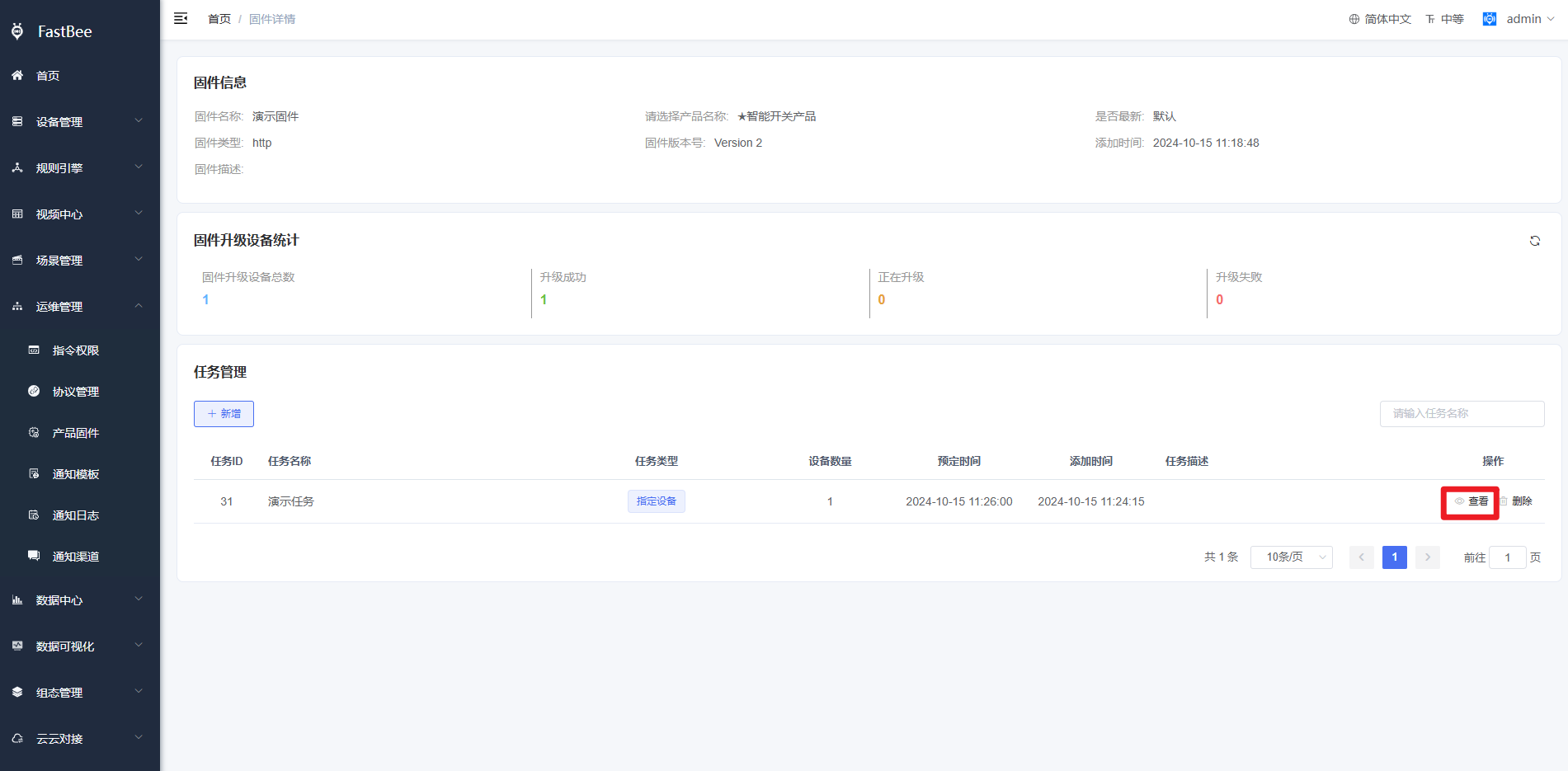

Shared Screenshots

The English documentation reuses the screenshots from the Chinese source page. UI labels in screenshots may remain Chinese.
